Water Dragon Flow Control chemical metering system w/ stainless steel case and PVC manifold blocks
Manufacturer Part Numbers: WD-5409
SKUs: WD-5409
SKUs: WD-5409
Package Dimensions:
Height: 16.00 Inches
Width: 16.00 Inches
Length: 16.00 Inches
Weight: 16 Lb(s) 0 Oz
MSRP
$1453.76
Retail Price
$1,272.84
QTY:
Warning California Proposition 65 Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov
The Benefits
Never ‘batch mix’ your cleaning agents ever again. The Water Dragon Flow Control system allows you to draw from individual tanks of your pure products and meter them to your individual desired mix. Need a 20% mix on the roof and 5% on the house? Simply set your mix ratio and when you need to change it, turn the valve. Never again will your mix be too strong or too weak, the proportioner will 𝐒𝐮𝐩𝐩𝐨𝐫𝐭𝐬 allow you to adjust your mix on the fly. The Water Dragon Flow Control works on the inlet side of your pump system and is compatible with 12volt pumps, air diaphragm pumps, booster pumps and other demand pump systems.
High-Quality Parts
These systems are built for the long haul! You will never need to buy another unit because of a valve malfunction. The system was designed to be fully rebuildable/replaceable. The water and soap valves have an extremely long lifespan but we recommend the SH (bleach) valve be rebuilt annually for uninterrupted use. Flushing the SH valve is recommended after every use and can be done easily with the installation of a 3-way valve on the SH intake. Having one side going to SH and the other to water you simply turn the 3-way to water after using and flush system, pump, etc.
How to Operate
For the system to operate you will need: a water tank, bleach tank, and a soap source, pulling soap out of 1-gallon jugs—or 5-gallon pails will work but larger tanks will 𝐒𝐮𝐩𝐩𝐨𝐫𝐭𝐬 allow for less refilling and extended run Time. Water and bleach tanks will be plumbed from the top with equal length 1/2" lines. The soap supply can use 1/2", 3/8" or even 1/4" as it is just a drip in the system. All pickups must be filtered to control debris intake. The system will vary slightly from user to user, so individual testing may be required. The dial that is on valves goes by degrees 0-180. Look at the specs tab for more information on operating.
Warranty:
The Power Wash Store offers a full one-year warranty, in-house only. You may ship it back for a no-cost annual inspection within the first year, you only pay the inbound freight! For the 1st full year, warranty labor is at no charge, you only pay the cost of required non-warrantied parts. Each component that makes up the final assembly has its own manufacturer's warranty. The stainless steel case has a life-time warranty against manufacturer defects. Wearable items such as valves, check valves, fittings and hinges carry a 90-day warranty against manufacturer defects does not include chemical damage or normal wear).

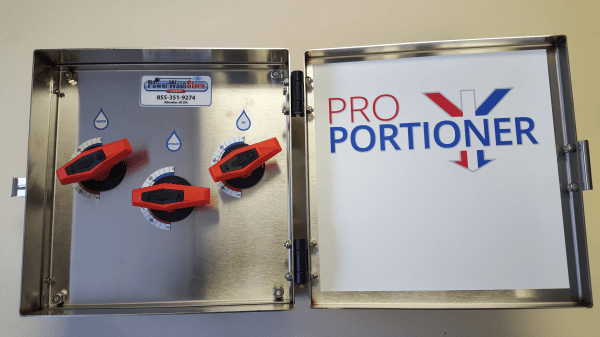

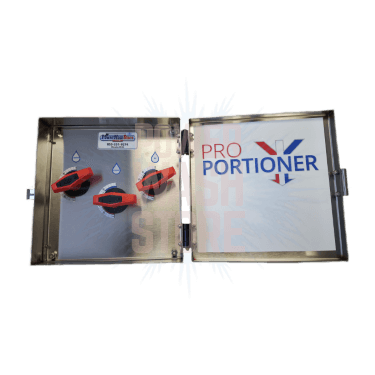

- Professional stainless steel case with door
- Inlet and outlet PVC manifold blocks
- Upgraded warranty

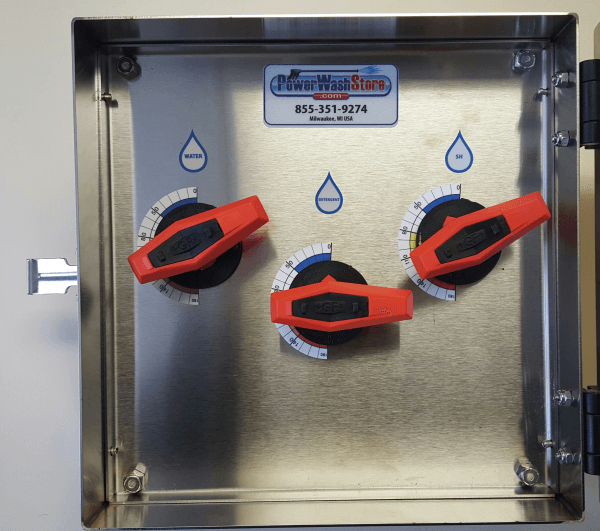

- High quality Georg Fisher metering valves
- Upgraded SH check valve
The following degrees indicate approximate percentages for the SH (bleach) valve:
The soap valve will start to flow soap at approximately 35-40 degrees. The soap's viscosity affects the draw, so open to 35-40 and adjust as desired.
| SH Valve Setting | Water Valve Setting |
|---|---|
| 50° = 10% | 180° |
| 80° = 20% | 180° |
| 110° = 30% | 180° |
| 140° = 40% | 180° |
| 180° = 50% | 180° |
The water valve will stay wide open at 180 degrees. The only time to adjust the water is when you want to go above 50% mix. Seldom will you go over 50%, but if you need to, use SH settings in reverse.
| SH Valve Setting | Water Valve Setting |
|---|---|
| 180° = 50% | 180° |
| 180° = 60% | 140° |
| 180° = 70% | 110° |
| 180° = 80% | 80° |
| 180° = 90% | 50° |
These settings are approximate and will vary based on each unit setup and plumbing. These should be seen as a starting point to fine-tune your unit. Once your ratios are determined they will be repeatable and should not change. These percentages are based on 10.5% SH. Across the country, SH percentages and quality vary so it is very tough to make exact mixes from area to area, but this system is incredibly repeatable. Find your perfect spots and mark them for your system.
