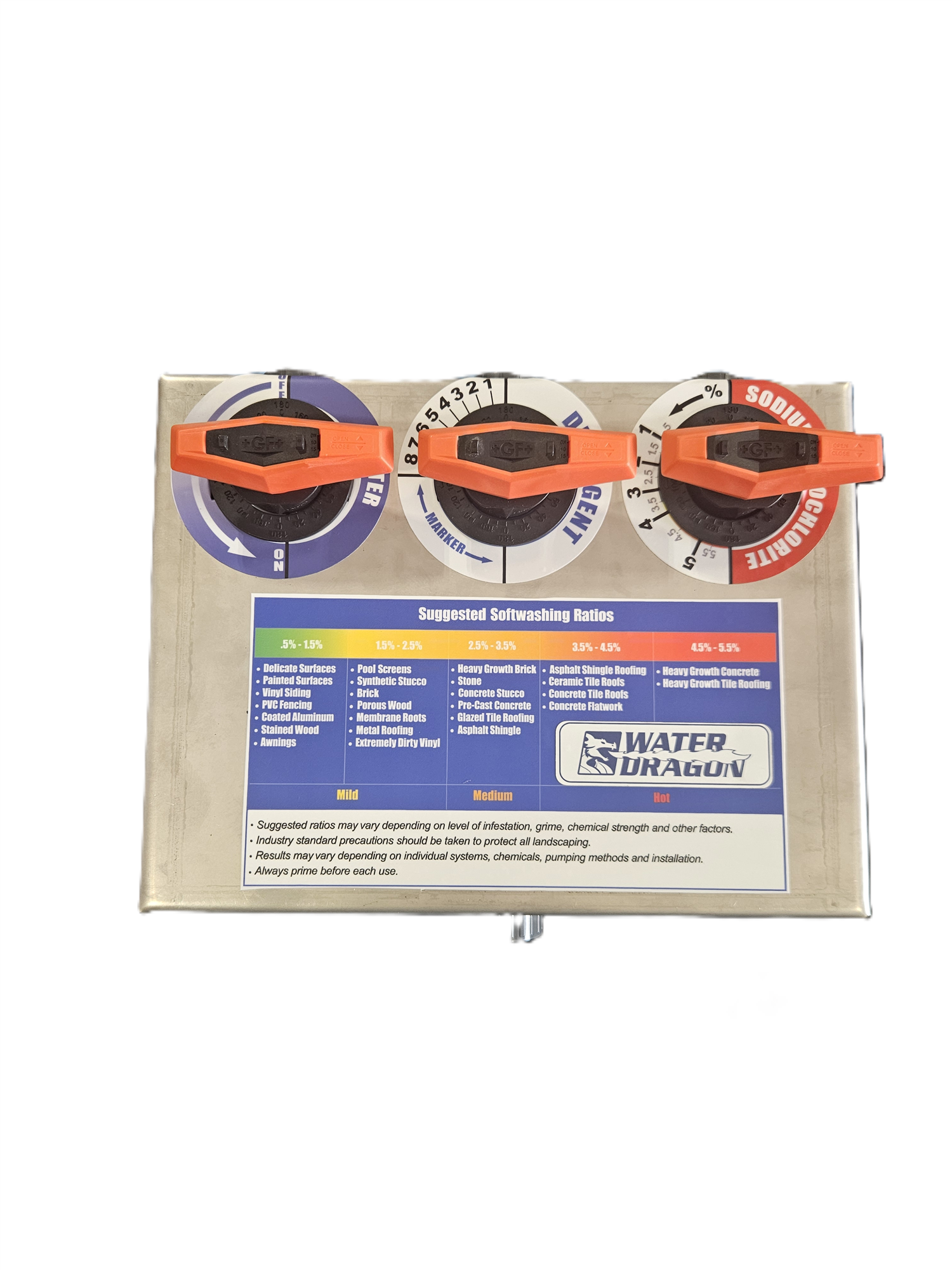

Water Dragon Flow Control Chemical Metering System
Manufacturer Part Numbers: 09-6100, 09-6100-HF, 09-6101
SKUs: 09-6100, 09-6100-HF, 09-6101
SKUs: 09-6100, 09-6100-HF, 09-6101
Package Dimensions:
Height: 8.00 Inches
Width: 16.00 Inches
Length: 16.00 Inches
Weight: 15 Lb(s) 0 Oz
Retail Price
$800.11
QTY:
Warning California Proposition 65 Detectable amount of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm may be found in pressure washing equipment, accessories and exhaust. For More Information Visit www.p65warnings.ca.gov
Adding this item to your cart will qualify your order for free shipping.
Water Dragon Flow Control Chemical Metering System
The Benefits
Never ‘batch mix’ your cleaning agents ever again. The Water Dragon Flow Control system allows you to draw from individual tanks of your pure products and meter them to your individual desired mix. Need a 20% mix on the roof and 5% on the house? Simply set your mix ratio and when you need to change it, turn the valve. Never again will your mix be too strong or too weak, the proportioner will 𝐒𝐮𝐩𝐩𝐨𝐫𝐭𝐬 allow you to adjust your mix on the fly. The Water Dragon Flow Control works on the inlet side of your pump system and is compatible with 12volt pumps, air diaphragm pumps, booster pumps and other demand pump systems.
High-Quality Parts
These systems are built for the long haul! You will never need to buy another unit because of a valve malfunction. The system was designed to be fully rebuildable/replaceable. The water and soap valves have an extremely long lifespan but we recommend the SH (bleach) valve be rebuilt annually for uninterrupted use. Flushing the SH valve is recommended after every use and can be done easily with the installation of a 3-way valve on the SH intake. Having one side going to SH and the other to water you simply turn the 3-way to water after using and flush system, pump, etc.
How to Operate
For the system to operate you will need: a water tank, bleach tank, and a soap source, pulling soap out of 1-gallon jugs—or 5-gallon pails will work but larger tanks will 𝐒𝐮𝐩𝐩𝐨𝐫𝐭𝐬 allow for less refilling and extended run Time. Water and bleach tanks will be plumbed from the top with equal length 1/2" lines. The soap supply can use 1/2", 3/8" or even 1/4" as it is just a drip in the system. All pickups must be filtered to control debris intake. The system will vary slightly from user to user, so individual testing may be required. The dial that is on valves goes by degrees 0-180. Look at the specs tab for more information on operating.
Warranty:
Full one-year warranty on stainless steel housing. 90-day warranty against manufacturer defects (does not include chemical damage or normal wear)
- 2 piece stainless steel housing
- Georg Fisher OR import metering valves
- PVC pipe manifold fluid path
- Upgraded SH check valve
